3209 NPPB.AH02

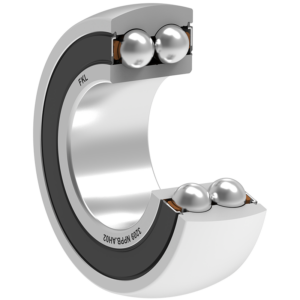

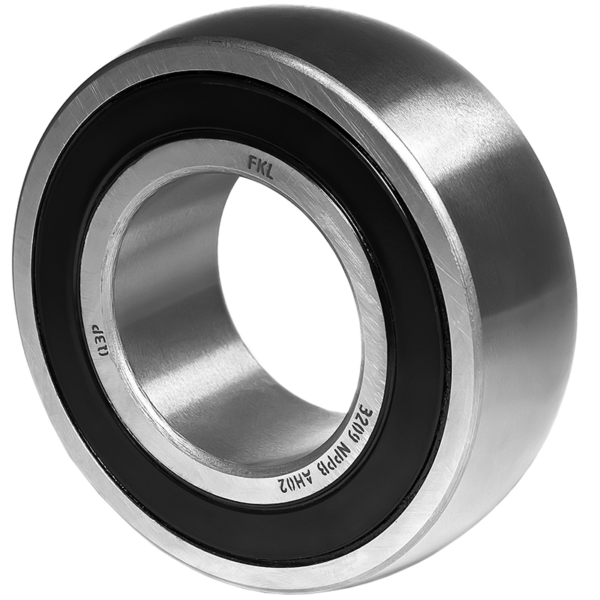

Double Row Angular Contact Ball Bearing

Application: Disc Harrow



Categoria:

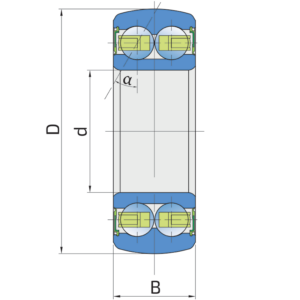

Technical Specification
Cdyn Dynamic load rating 51 kN
Co Static load rating 39 kN
D Outside diameter 90 mm
d Bore diameter 45 mm
kg Mass 0.63 kg
B Width inner ring 30.2 mm
α Contact angle 30 °

Sealing

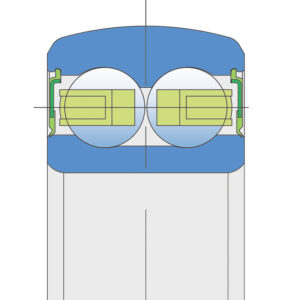

RS SEAL / RS SEAL (2RS)

The older type of the single seal. Prevents penetration of soil, dust and water and since exposed to the impact of abrasive particles is expendable more than some new types of seals. Due to extended friction, the permitted speeds are lower. It was gradually replaced with the improved versions of S. Because of the traditional reasons Y bearings with this kind of seal do not have the additional sealing mark. It is used with the Y-bearings and deep groove ball bearings.
