BW1-306037
BW1-357233

357234A

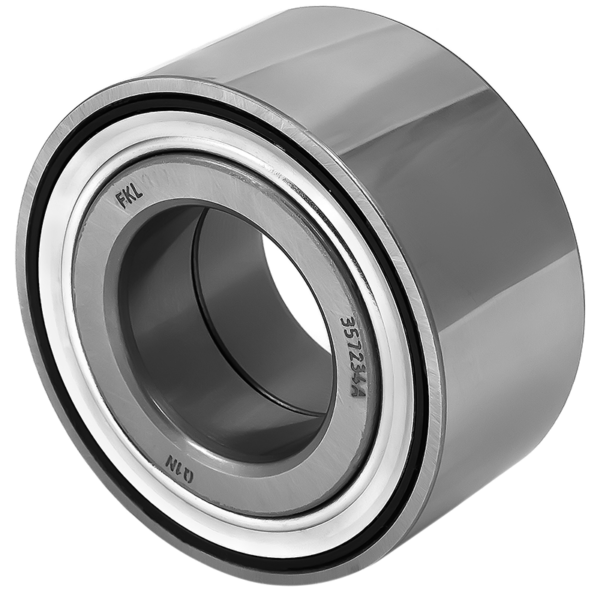

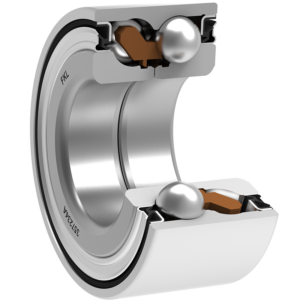

Double Row Angular Contact Ball Bearing

Application: Disc Harrow

Categoria:

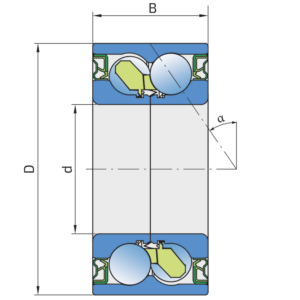

Technical Specification
Cdyn Dynamic load rating 47.4 kN
Co Static load rating 38.3 kN
D Outside diameter 72 mm
d Bore diameter 35 mm
kg Mass 0.539 kg
B Width inner ring 34 mm
α Contact angle 40 °

Sealing

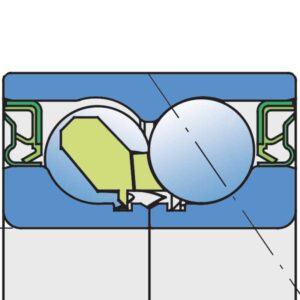

CASSETTE SEAL / CASSETTE SEAL

Cassette seal on the both side. This sealing provides excellent protection from contamination and low friction. Therefore, bearings with this type of sealing can be used for high speed applications.

Scheda tecnica

PDF
