357234A
BW1-457523

BW1-357233

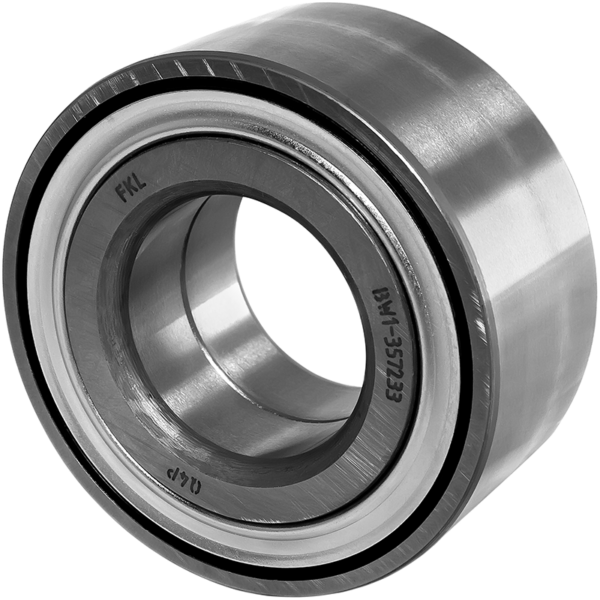

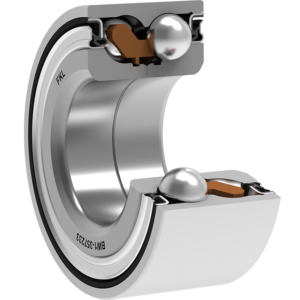

Double Row Angular Contact Ball Bearing

Application: Disc Harrow



Categoria:

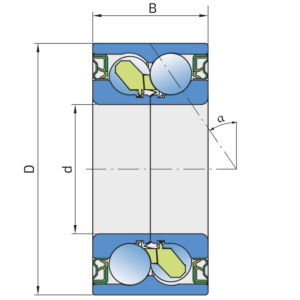

Technical Specification
Cdyn Dynamic load rating 47.4 kN
Co Static load rating 38.3 kN
D Outside diameter 72.043 mm
d Bore diameter 35 mm
kg Mass 0.553 kg
B Width inner ring 33 mm
α Contact angle 40 °

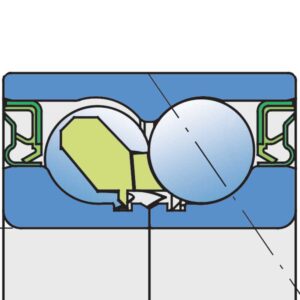

Sealing

CASSETTE SEAL / CASSETTE SEAL

Cassette seal on the both side. This sealing provides excellent protection from contamination and low friction. Therefore, bearings with this type of sealing can be used for high speed applications.
