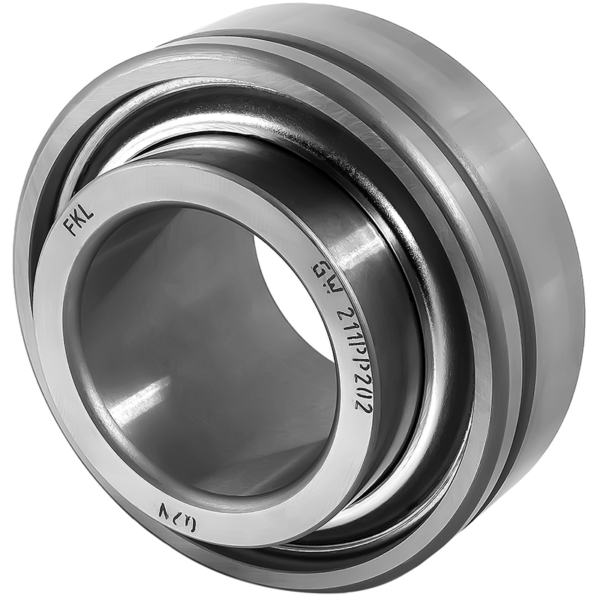

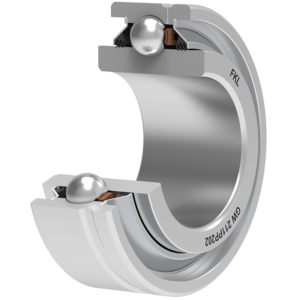

GW 211PP202

Round Bore Series With Cylindrical Outer Ring – Relubricable Type

Application: Disc Harrow

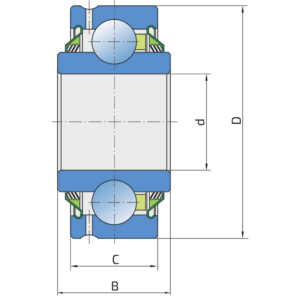

Technical Specification
Cdyn Dynamic load rating 43.5 kN
Co Static load rating 29 kN
D Outside diameter 100 mm
d Bore diameter 51.308 mm
C D-shape hole cut out dimension 33.34 mm
kg Mass 1.11 kg
B Width inner ring 60.3 mm

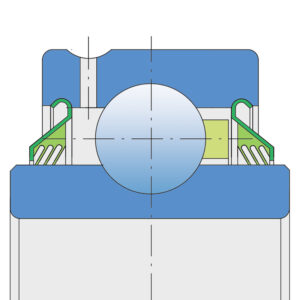

Sealing

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
