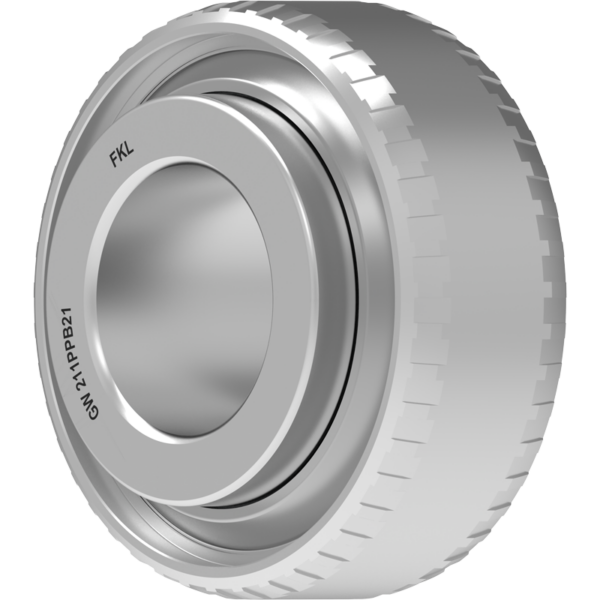

GW 211PPB21

Round Bore Series With Cylindrical Outer Ring – Relubricable Type

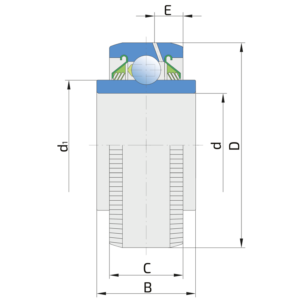

Technical Specification
d Bore diameter 45.21 mm
D Outside diameter 101.067 mm
B Width inner ring 53.975 mm
C Width outer ring 36.525 mm
d1 Outer diameter inner ring 69.1 mm
E Distance from raceway centre to the hole for lubrication 15.6 mm
Cdyn Dynamic load rating 43.5 kN
Co Static load rating 29 kN
kg Mass 1.49 kg

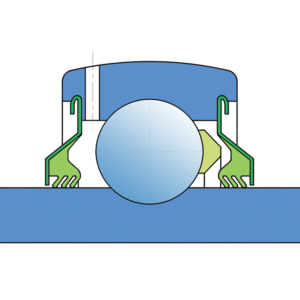

Sealing

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
