GWHG 211PP25

Trunnion Bearing Units

Application: Disc Harrow

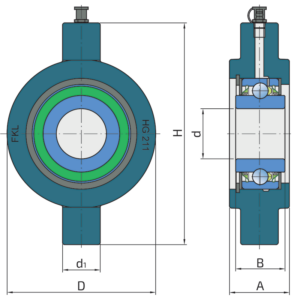

Technical Specification
Cdyn Dynamic load rating 43.5 kN
Co Static load rating 29 kN
D Outside diameter 134 mm
d Bore diameter 45. 212 mm
d1 Bearing housing sleeve diameter 34 mm
kg Mass 4.88 kg
H Housing height 200 mm
B Width inner ring 44.5 mm
A Overall width 54 mm

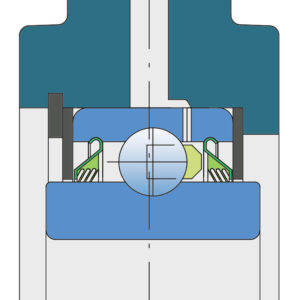

Sealing

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
