GWHGR 211PP202

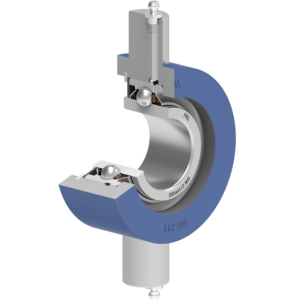

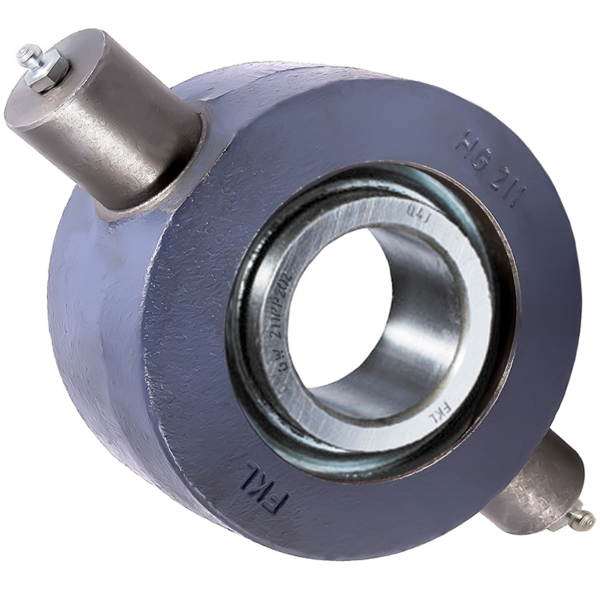

Trunnion Bearing Units

Application: Disc Harrow

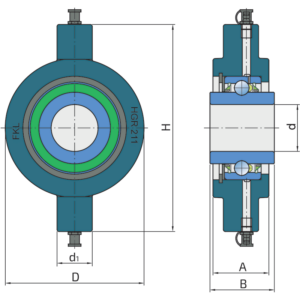

Technical Specification
Cdyn Dynamic load rating 43.5 kN
Co Static load rating 29 kN
D Outside diameter 129.5 mm
d Bore diameter 51.308 mm
d1 Bearing housing sleeve diameter 37 mm
kg Mass 4.8 kg
H Housing height 202.5 mm
B Width inner ring 60.3 mm
A Overall width 57 mm

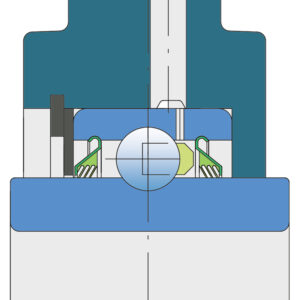

Sealing

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
