GWR 209PPB30

Rubberized Bearing Unit

Application: Disc Harrow

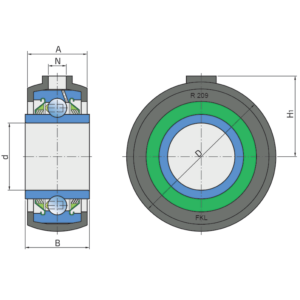

Technical Specification
Cdyn Dynamic load rating 32.5 kN
Co Static load rating 20.4 kN
D Outside diameter 101 mm
d Bore diameter 44.958 mm
kg Mass 0.92 kg
H1 Distance from the contact surface to the bearing axis 54 mm
B Width inner ring 42.86 mm
N Hole diameter 12.7 mm
A Overall width 40 mm

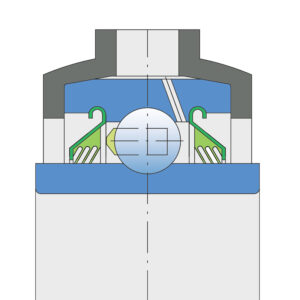

Sealing

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
