GWR 211PPB21

Rubberized Bearing Unit

Application: Disc Harrow

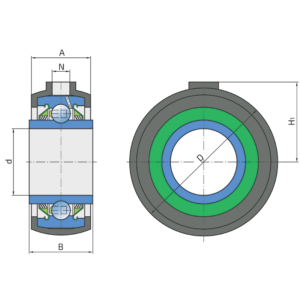

Technical Specification
Cdyn Dynamic load rating 43.5 kN
Co Static load rating 29 kN
D Outside diameter 113 mm
d Bore diameter 45.212 mm
kg Mass 1.62 kg
H1 Distance from the contact surface to the bearing axis 60.5 mm
B Width inner ring 53.975 mm
N Hole diameter 12.7 mm
A Overall width 44.7 mm

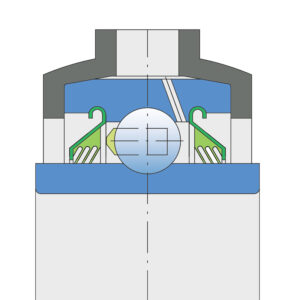

Sealing

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
