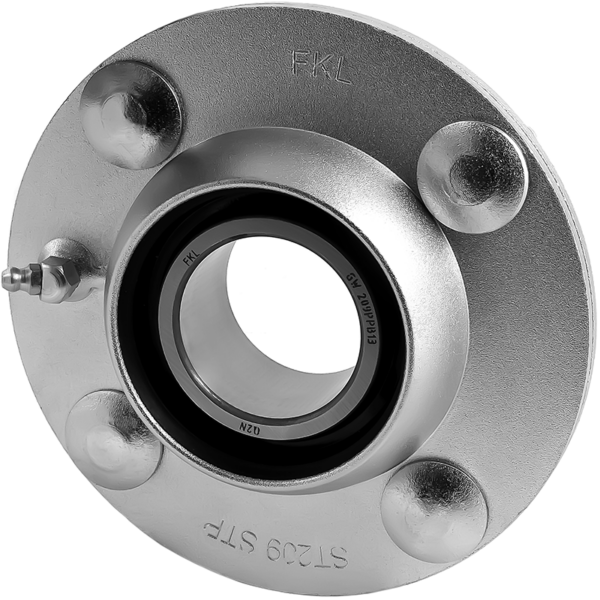

GWST 209PPB13

Round Series

Application: Disc Harrow

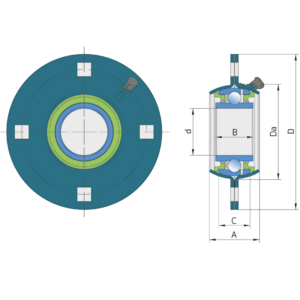

Technical Specification
Cdyn Dynamic load rating 32.5 kN
Co Static load rating 20.4 kN
J Pitch circle diameter 120.5 mm
D Outside diameter 150 mm
d Bore diameter 45.24 mm
kg Mass 1.836 kg
B Width inner ring 36.53 mm
N Sqare hole dimension 13.5 mm
A Overall width 48.5 mm

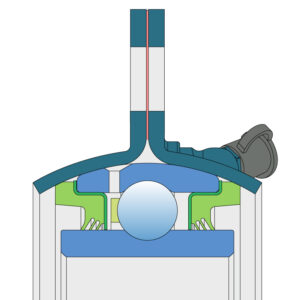

Sealing

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
