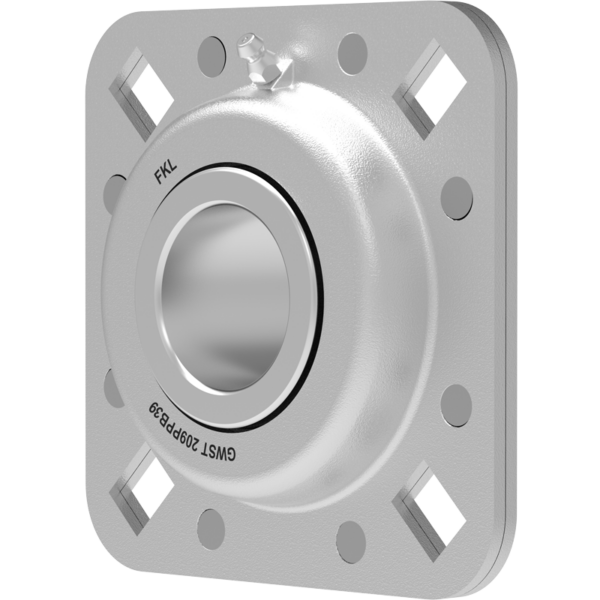

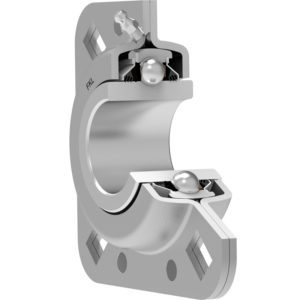

- Vista 3D

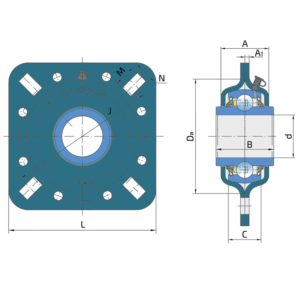

- Disegno Tecnico
- Sigillatura
| d | Bore diameter | 38.7 | mm |
| B | Width inner ring | 42.85 | mm |
| C | Width outer ring | 22 | mm |
| Da | Centering diameter | 97 | mm |
| L | Overall length | 127 | mm |
| A | Distance from the housing flange to the front of the inner ring of the bearing | 39 | mm |
| A1 | Width of the top of the housing | 3.5 | mm |
| J | Pitch circle diameter | 127 | mm |
| N | Diameter of attachment slot | 13.5 | mm |
| Fr | Radial load | 7.7 | kN |
| Fa | Axial load | 3.8 | kN |
| kg | Mass | 1.63 | kg |
| Cdyn | Dynamic load rating | 32.5 | kN |
| Co | Static load rating | 20.4 | kN |

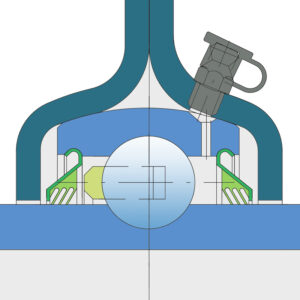

Sealing
T SEAL / T SEAL (2T)
3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
