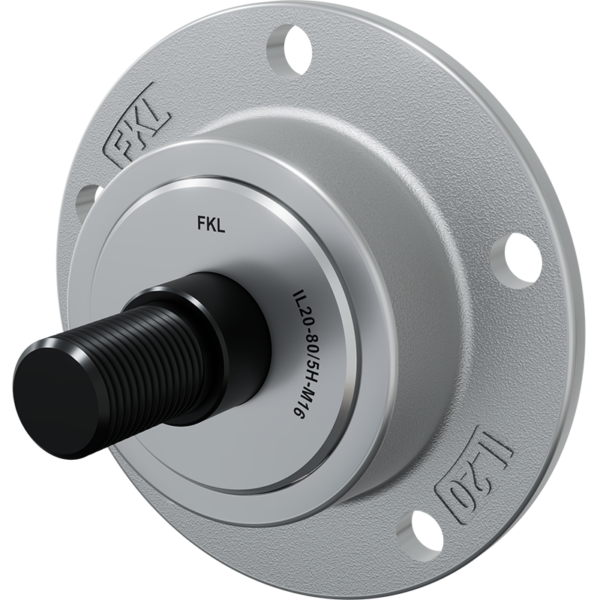

IL20-80/5H-M16
The Bearing Solution For Seeding Machines, Integrated Flange
Application: Seeding Machine

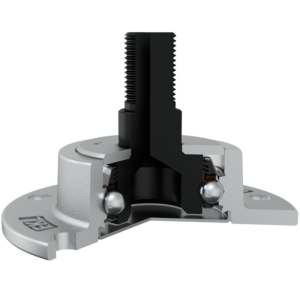

- Vista 3D
- Disegno Tecnico
- Sigillatura
| J | Pitch circle diameter | 80 | mm |
| D | Outside diameter | 94 | mm |
| H/T | Hole/Thread | 5×8.5 | mm |
| d | Bore diameter | 20 | mm |
| M | Outher Thread | M16 | mm |
| C | D-shape hole cut out dimension | 18.5 | mm |
| L | Total length | 60.5 | mm |
| L1 | Total flange length | 25.5 | mm |
| E | Length of D shape | 13.5 | mm |
| F | Length of threaded part | 21.5 | mm |
| kg | Mass | 0.66 | kg |
| Cdyn | Dynamic load rating | 22 | kN |
| Co | Static load rating | 15.2 | kN |
| Pu | Fatigue load limit | 0.64 | kN |
Sealing

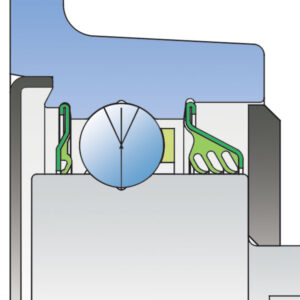

SHEET METAL SHIELD+S SEAL / T SEAL+STEEL PLATE
Sheet metal shield and S seal on the base side and 3-lip seal with Steel plate on the front side which is exposed to contaminants.
Sheet metal shield and S seal together with attached disc eliminates the possibility of contamination from the base side.
The 3-lip seal on the front side protects the bearing from contaminant penetration. The Steel plate protects the seal from mechanical damage.
