LENN 210 2T
LEFN 210 2PC

LEFC 210 2PB

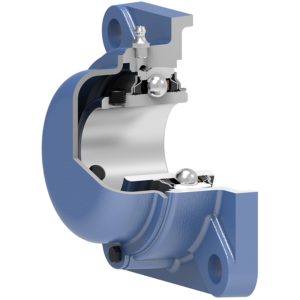

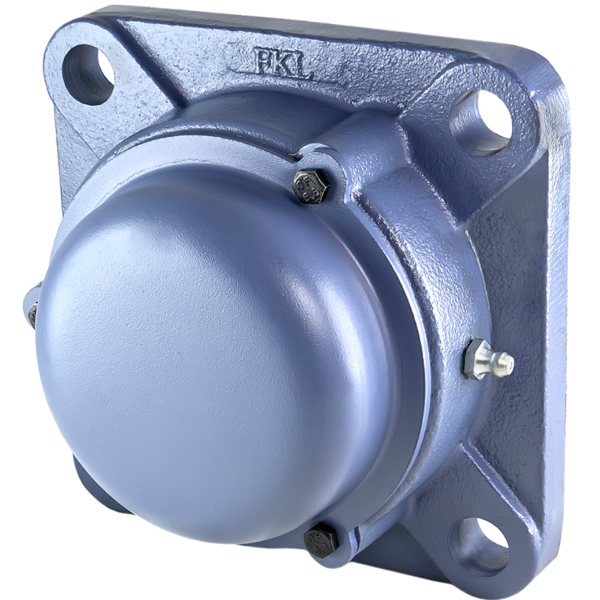

Bearing Unit

Application: Universal Solution



Categoria:

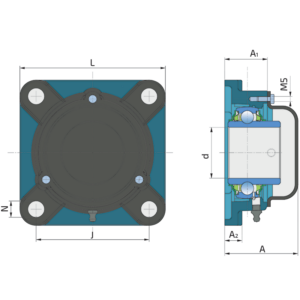

Technical Specification
Co Static load rating 23.2 kN
J Pitch circle diameter 111 mm
d Bore diameter 50 mm
L Total length 143 mm
kg Mass 2.9 kg
J Distance between the holes 35.1 mm
N Hole diameter 16 mm
A Overall width 72 mm
A1 Total housing width 42 mm
A2 Housing flange thickness 17 mm
Cdyn Dynamic load rating 35.1 kN

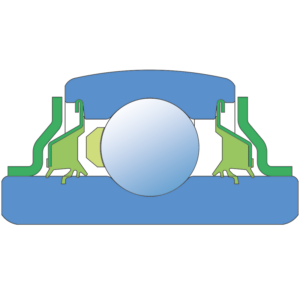

Sealing

PB SEAL / PB SEAL (2PB)

A 5-lip seal with Metal flinger ring on the both side of the bearing, provides equal protection against contamination. 5-lip seal provides a high level of the bearing protection from impurities and due to the special design of the seal the rotation speed can be doubled. The Metal flinger ring protects the seal from mechanical damage.
