LEFG 209 TDT

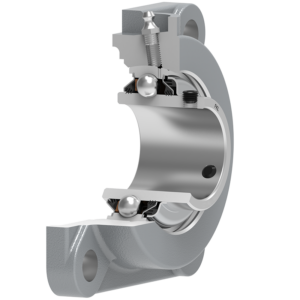

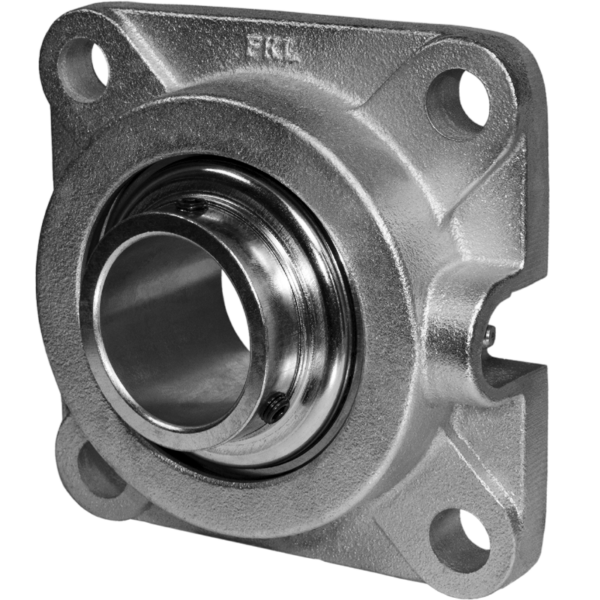

Armor Bearing Unit

Application: Universal Solution

Categoria:

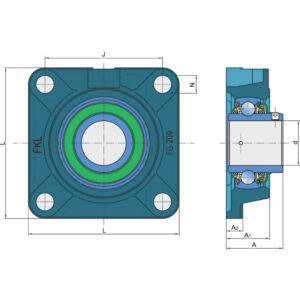

Technical Specification
d Bore diameter 45 mm
A1 Total housing width 38 mm
A2 Housing flange thickness 16 mm
J Distance between the holes 105 mm
L Total length 137 mm
N Hole diameter 16 mm
A Overall width 52.2 mm
kg Mass 2.41 kg
Cdyn Dynamic load rating 33.2 kN
Co Static load rating 21.6 kN
Pu Fatigue load limit 0.907 kN

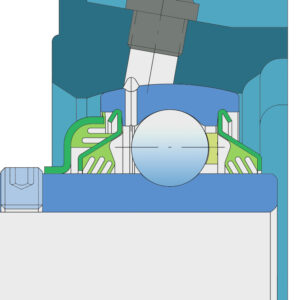

Sealing

DOUBLE T SEAL / T SEAL

3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants.

The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage.
