LEFC 210 2PB
LEFN 212 2TB

LEFN 210 2PC

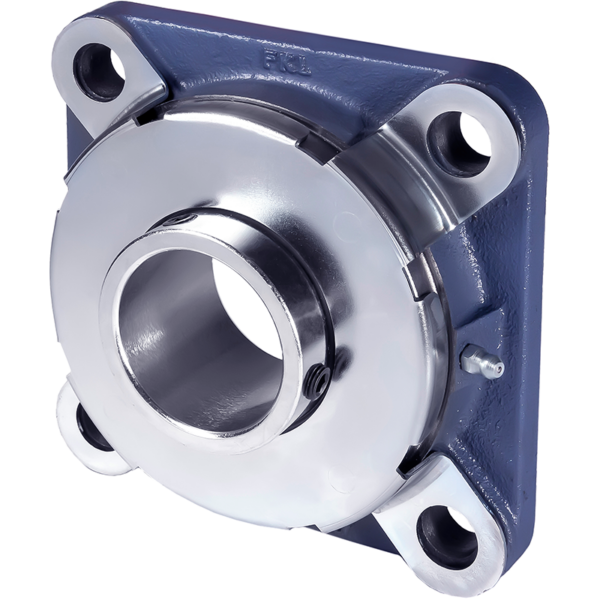

Bearing Unit

Application: Universal Solution



Categoria:

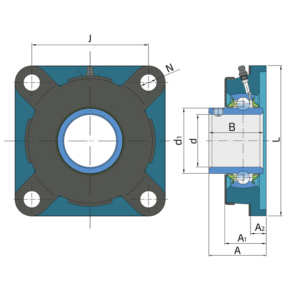

Technical Specification
d Bore diameter 50 mm
d1 Outer diameter inner ring 62.5 mm
L Total length 143 mm
J Distance between the holes 111 mm
N Hole diameter 16 mm
A Overall width 54.6 mm
A1 Total housing width 38 mm
A2 Housing flange thickness 15 mm
B Width inner ring 51.6 mm
kg Mass 2.8 kg
Cdyn Dynamic load rating 35.1 kN
Co Static load rating 23.2 kN
Pu Fatigue load limit 0.974 kN

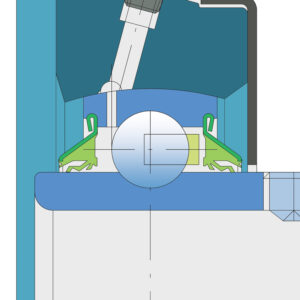

Sealing

P SEAL / P SEAL + METAL COVER

5-lip seal on the base side and 5-lip seal with Metal cover on the front side which is exposed to contaminants.

The 5-lip seal on the front side protects the bearing from contaminant penetration. The Metal cover protects the seal from mechanical damage and from entanglement of grass stems of plants and twines.
