LEFN 210 2PC

LEFN 212 2TB

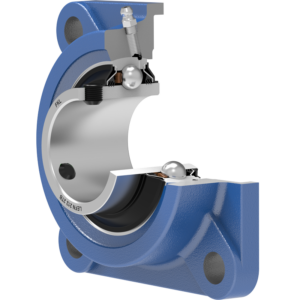

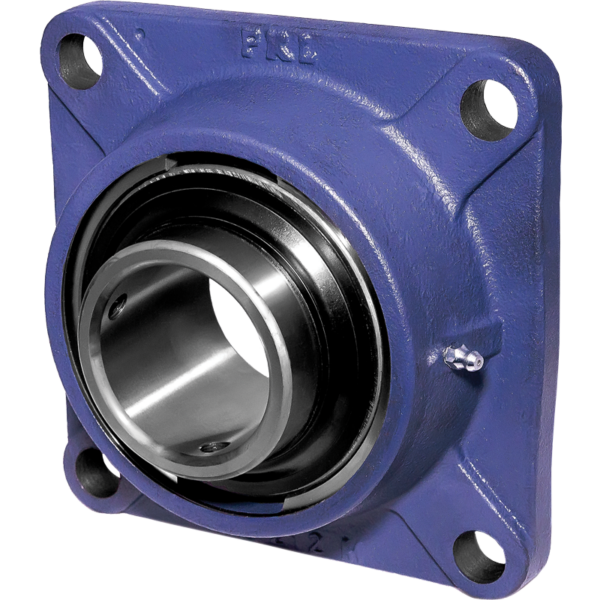

Bearing Unit

Application: Universal Solution



Categoria:

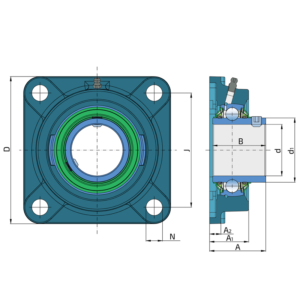

Technical Specification
d Bore diameter 60 mm
d1 Outer diameter inner ring 75.64 mm
L Total length 175 mm
J Distance between the holes 143 mm
N Hole diameter 19H13 mm
A Overall width 68.7 mm
A1 Total housing width 48 mm
A2 Housing flange thickness 15 mm
B Width inner ring 65.1 mm
kg Mass 4.27 kg
Cdyn Dynamic load rating 52 kN
Co Static load rating 36 kN
Pu Fatigue load limit 1.512 kN

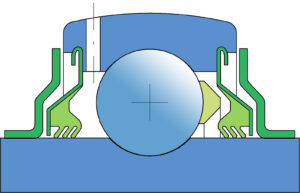

Sealing

METAL FLINGER RING+T SEAL / T SEAL+ METAL FLINGER RING (2TB)

3-lip seal with Metal flinger ring on the both side of the bearing, provides equal protection against contamination. The Metal flinger ring protects the seal from mechanical damage.
