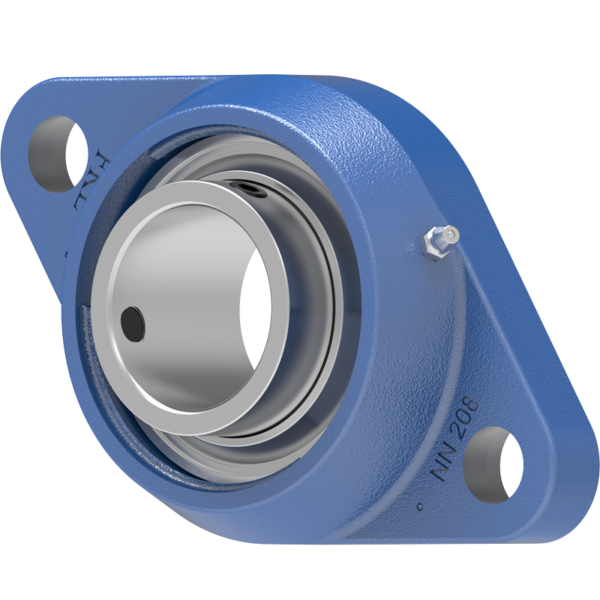

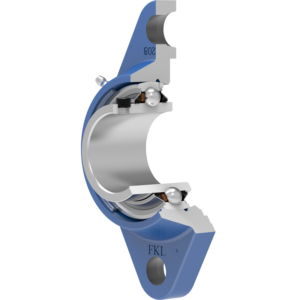

LENN 208 2T

Bearing Unit

Application: Universal Solution

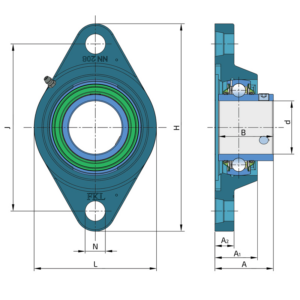

Technical Specification
d Bore diameter 40 mm
H Housing height 175 mm
L Total length 100 mm
J Distance between the holes 144 mm
N Hole diameter 14 mm
A Overall width 51.2 mm
A1 Total housing width 36 mm
A2 Housing flange thickness 16 mm
B Width inner ring 49.2 mm
kg Mass 1.69 kg
Cdyn Dynamic load rating 30.7 kN
Co Static load rating 19 kN
Pu Fatigue load limit 0.798 kN

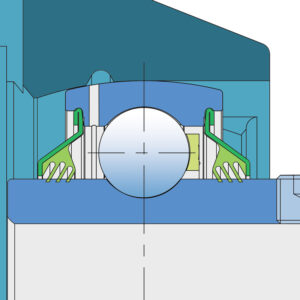

Sealing

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
