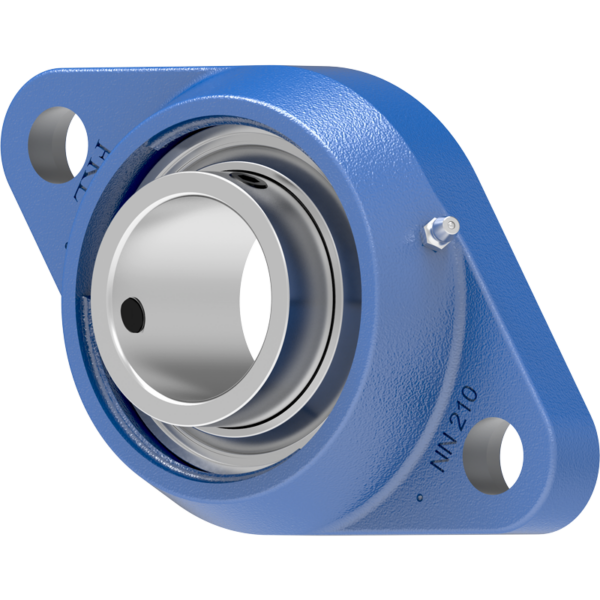

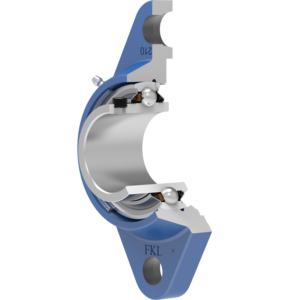

LENN 210 2T

Bearing Unit

Application: Universal Solution

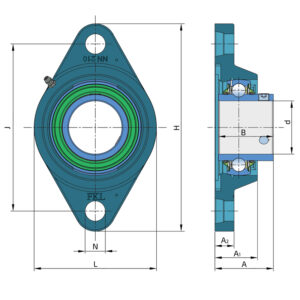

Technical Specification
d Bore diameter 50 mm
H Housing height 195 mm
L Total length 115 mm
J Distance between the holes 157 mm
N Hole diameter 19 mm
A Overall width 55 mm
A1 Total housing width 40 mm
A2 Housing flange thickness 18 mm
B Width inner ring 51.6 mm
kg Mass 2.13 kg
Cdyn Dynamic load rating 35.1 kN
Co Static load rating 23.2 kN
Pu Fatigue load limit 0.974 kN

Sealing

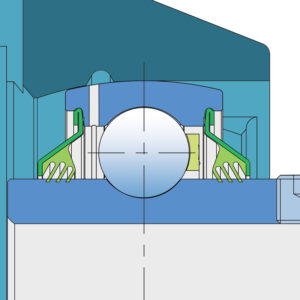

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
