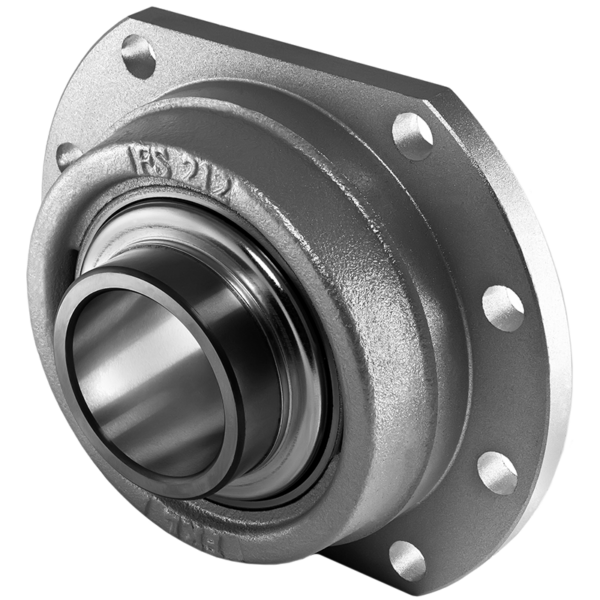

LESQFS 212 TDT.H
Bearing Unit
Application: Kneading and driving wheel

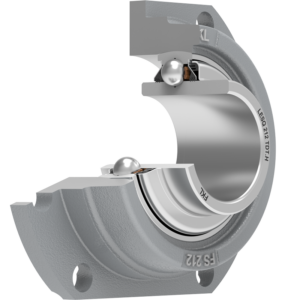

- Vista 3D

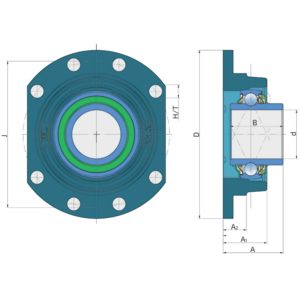

- Disegno Tecnico
- Sigillatura
| d | Bore diameter | 60 | mm |
| D | Outside diameter | 205 | mm |
| J | Pitch circle diameter | 180 | mm |
| A | Overall width | 73.7 | mm |
| A1 | Total housing width | 54 | mm |
| A2 | Housing flange thickness | 28.7 | mm |
| B | Width inner ring | 65.1 | mm |
| H/T | Hole/Thread | 14.5 | mm |
| kg | Mass | 5.3 | kg |
| Co | Static load rating | 67.2 | kN |
| Cdyn | Dynamic load rating | 79.3 | kN |
| Pu | Fatigue load limit | 2.82 | kN |

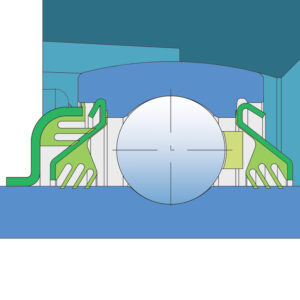

Sealing
DOUBLE T SEAL / T SEAL
3-lip seal on the base side and double 3-lip seal on the front side which is exposed to contaminants.
The double 3-lip seal on the front side protects the bearing from contaminant penetration. Also, the outer seal with 3 lips, with additional sealing, protects the inner seal from mechanical damage.
