IL40-1204H-M22x1.5

PL-127-G

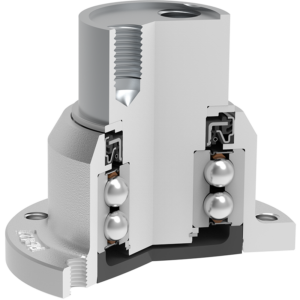

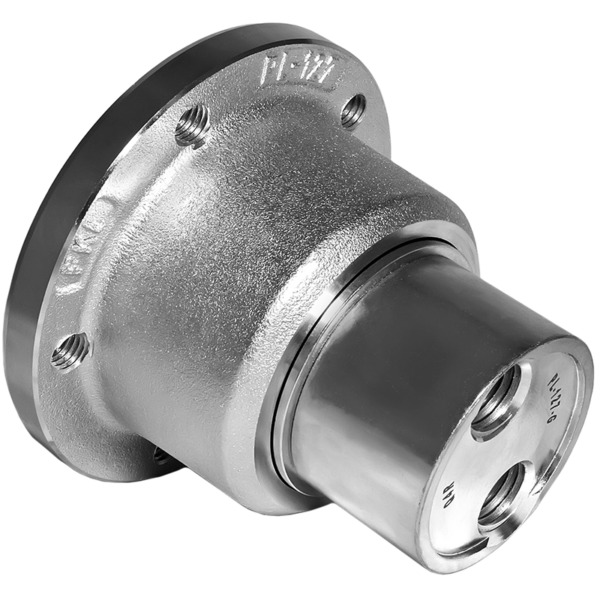

Bearing Unit

Application: Disc Harrow



Categoria:

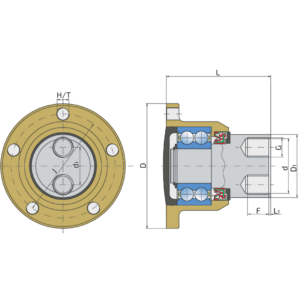

Technical Specification
Cdyn Dynamic load rating 48.8 kN
Co Static load rating 35.3 kN
J Pitch circle diameter 106 mm
D Outside diameter 127.3 mm
D1 Outside diameter 64.2 mm
H/T Hole/Thread M12 mm
d Bore diameter 55.7 mm
d1 Bore diameter 38 mm
L Total length 106.5 mm
L1 Counterbore depth 2 mm
F Length of threaded part 25 mm
kg Mass 3.81 kg
G Internal Thread 2xM20 mm

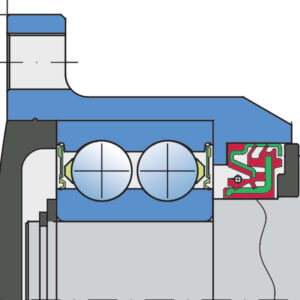

Sealing

PLACTIC COVER+ RS SEAL / RS SEAL+DIRTBLOCK SEAL+FORGED COVER PLATE

Plastic cover and RS seal on the base side and RS seal, Dirtblock seal and Forged cover plate on the front side which is exposed to contaminants.

Plastic cover and RS seal together with attached disc eliminates the possibility of contamination from the base side.

Dirtblock seal is designed for hard working conditions at unfriendly environment. Half metal – half rubber outside diameter provides reliable seal retention in the bore and improves sealing performance. Inside diameter is covered by rubber and improves sealing performance and easy installation. Forged cover plate is additional, strong protection of the Dirtblock seal against mechanical damage.

This sealing provides maximum protection against liquid or solid contaminants, which significantly extends bearing service life.
