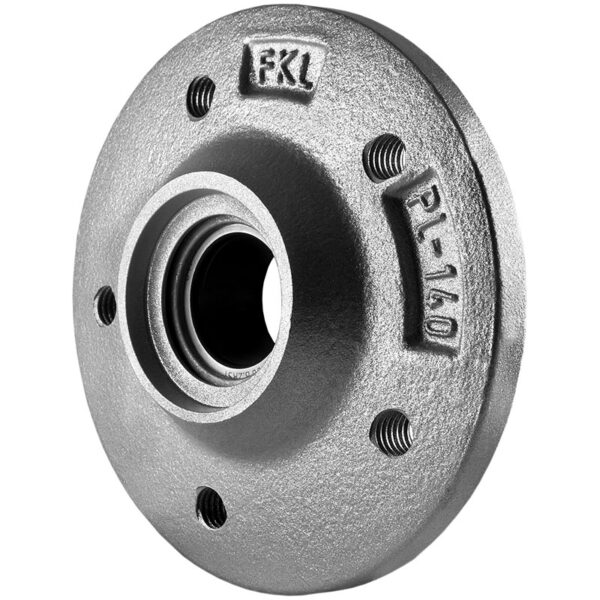

PL-140

Bearing Unit

Application: Disc Harrow

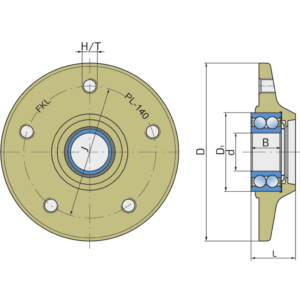

Technical Specification
Cdyn Dynamic load rating 31 kN
Co Static load rating 22.2 kN
J Pitch circle diameter 104 mm
D Outside diameter 140 mm
D1 Outside diameter 62 mm
H/T Hole/Thread M12 mm
d Bore diameter 30 mm
L Total length 35 mm
kg Mass 1.5 kg
B Width inner ring 23.8 mm

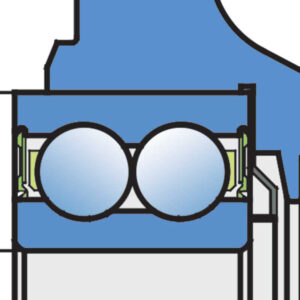

Sealing

RS SEAL / RS SEAL+METAL SHIELD

RS seal on the base side and RS seal with Metal shield on the front side which is exposed to the environment.
