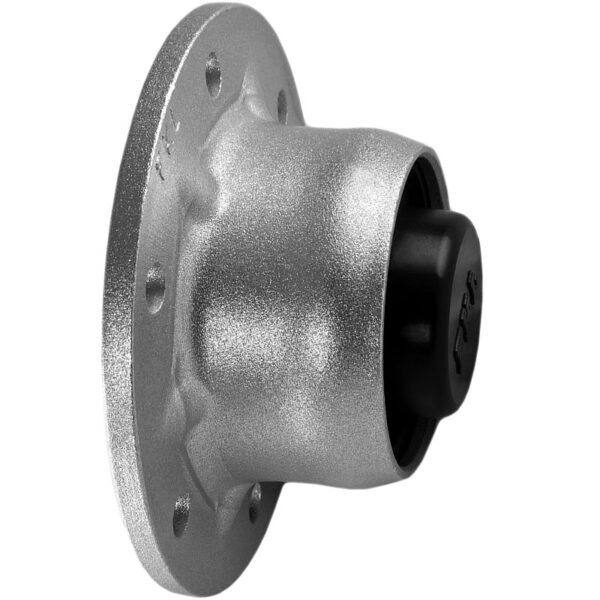

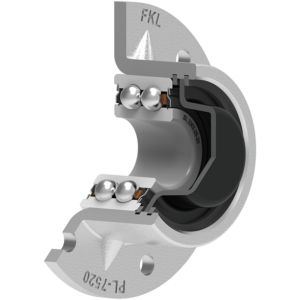

GWHGR 211PP202

PL-7520

Ball Bearing

Application: Seeding Machine

Categoria:

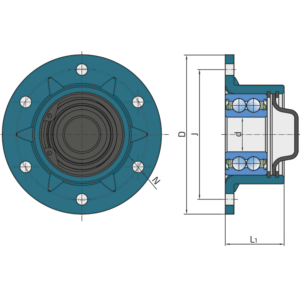

Technical Specification
Cdyn Dynamic load rating 19.5 kN
Co Static load rating 12.6 kN
D Outside diameter 92 mm
d Bore diameter 20 mm
L1 Flange height 34 mm
kg Mass 0.56 kg
J Distance between the holes 75 mm
N Hole diameter 6.7H12 mm

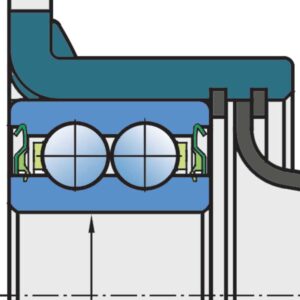

Sealing

S SEAL / S SEAL+PLASTIC CAP

S seal on the base side and S seal with Plastic cap on the front side which is exposed to the environment.

Plastic cap protects the nut and reduces the penetration of contaminants.
