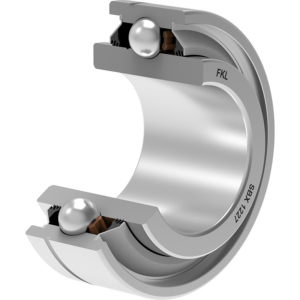

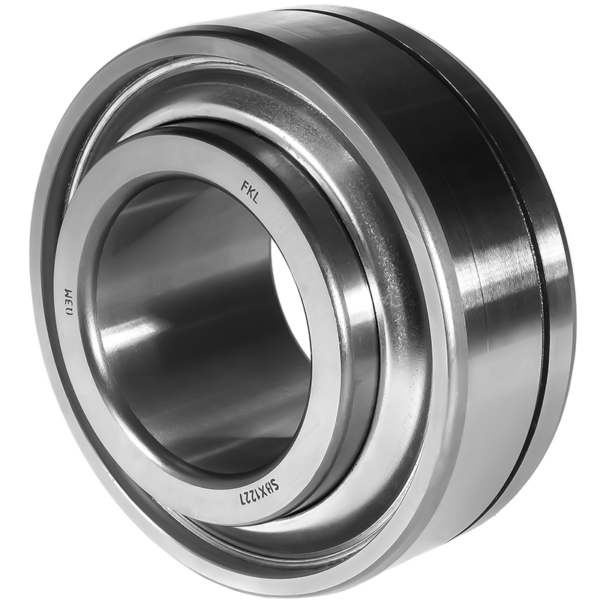

SBX 1227

Ball Bearing

Application: Disc Harrow

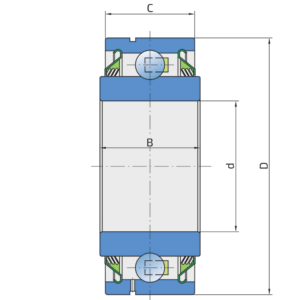

Technical Specification
Cdyn Dynamic load rating 52 kN
Co Static load rating 36 kN
D Outside diameter 110 mm
d Bore diameter 55.562 mm
C D-shape hole cut out dimension 38.3 mm
kg Mass 1.8 kg
B Width inner ring 55.562 mm

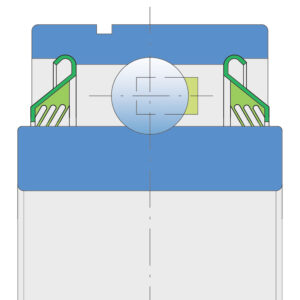

Sealing

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
