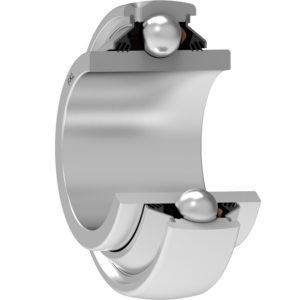

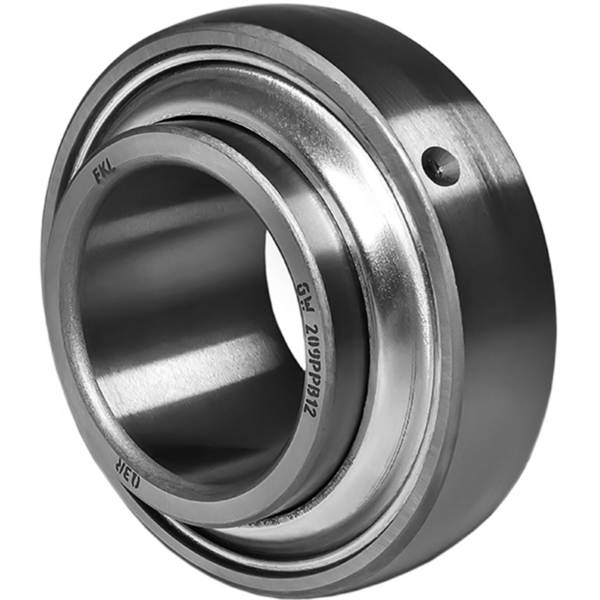

GW 209PPB12

Round Bore Series With Spherical Outer Ring – Relubricable Type

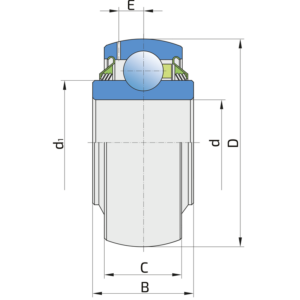

Technical Specification
d Bore diameter 44.83 mm
D Outside diameter 85 mm
B Width inner ring 42.85 mm
C Width outer ring 22 mm
d1 Outer diameter inner ring 56.6 mm
E Distance from raceway centre to the hole for lubrication 6.5 mm
Cdyn Dynamic load rating 32.5 kN
Co Static load rating 20.4 kN
kg Mass 0.68 kg

Sealing

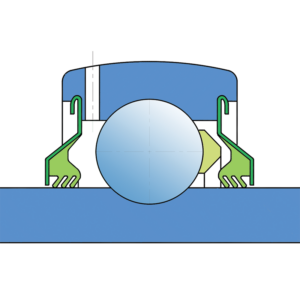

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
