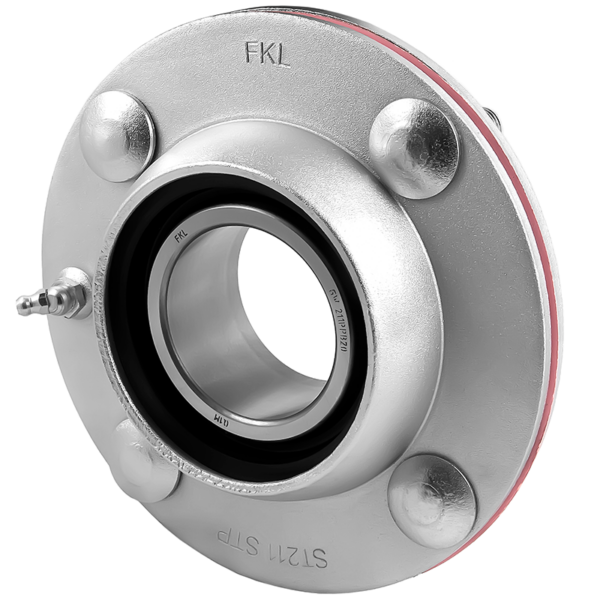

GWST 211PPB20

Round Series

Application: Disc Harrow

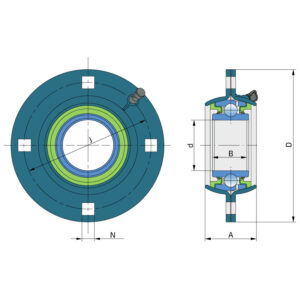

Technical Specification
Cdyn Dynamic load rating 43.5 kN
Co Static load rating 29 kN
J Pitch circle diameter 138 mm
D Outside diameter 167 mm
d Bore diameter 55.7 mm
kg Mass 2.706 kg
B Width inner ring 39.7 mm
N Hole diameter 13.5 mm
A Overall width 56.5 mm

Sealing

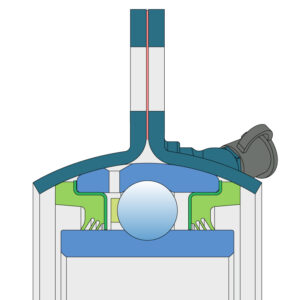

T SEAL / T SEAL (2T)

3-lip seal on the both side of the bearing, provides equal protection against contamination. Recommended for application where the possibility of contamination is the same on the both side.
