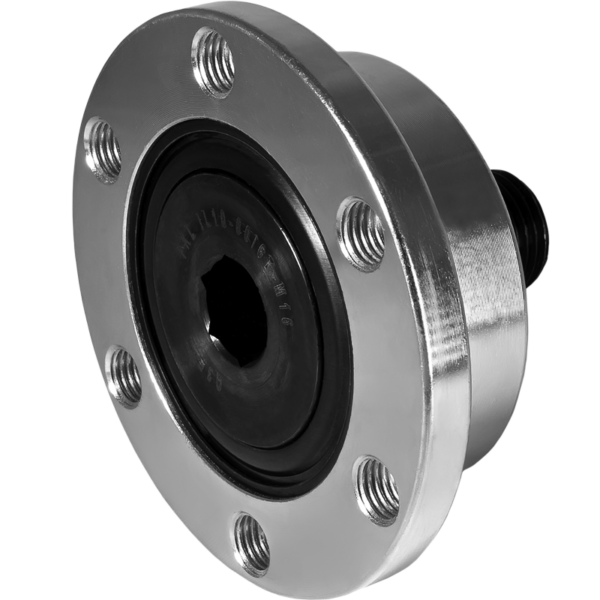

IL10-60/6T-M16-58

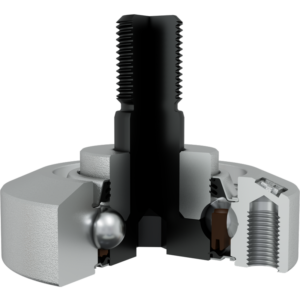

The Bearing Solution For Seeding Machines, Integrated Flange And Shaft

Application: Seeding Machine



Categoria:

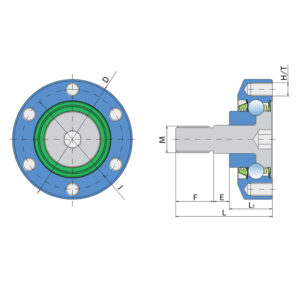

Technical Specification
J Pitch circle diameter 60 mm
D Outside diameter 72 mm
H/T Hole/Thread 6xM8x1 mm
M Outher Thread M16x1.5 right hand mm
L Total length 46.5 mm
L1 Total flange length 23 mm
F Length of threaded part 21.2 mm
kg Mass 0.41 kg
Cdyn Dynamic load rating 32 kN
Co Static load rating 22 kN
Pu Fatigue load limit 0.92 kN

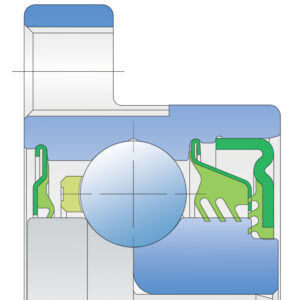

S SEAL / DOUBLE T SEAL+STEEL SHIELD

S seal on the base side and double 3-lip seal on the front side which is exposed to contaminants.

S seal on the base side prevents grease from leaking out of the bearing, while the double 3-lip seal gives the better protection than the single 3-lip seal. Steel shield is additional, strong protection of the double 3-lip seal against mechanical damage.
