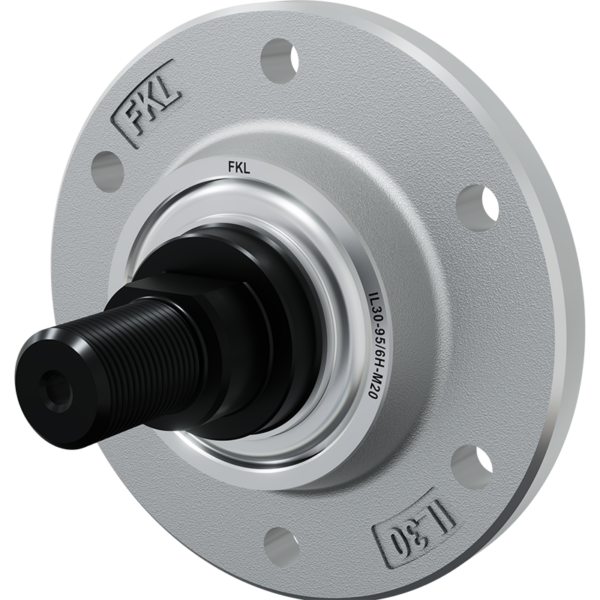

IL30-956H-M20
The Bearing Solution For Harsh Seeding Conditions And Coulter Discs Of Ploughs, Integrated Flange
Application: Seeding machines for No-till and Strip-till farming technology; Coulter discs for seeding machines; Marker discs for ploughs

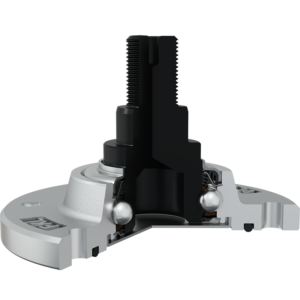

- Vista 3D

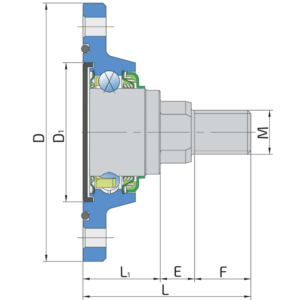

- Disegno Tecnico
- Sigillatura
| J | Pitch circle diameter | 95.5 | mm |
| D | Outside diameter | 117 | mm |
| D1 | Outside diameter | 63 | mm |
| H/T | Hole/Thread | 6×8.5 | mm |
| d | Bore diameter | 28 | mm |
| C | D-shape hole cut out dimension | 25.4 | mm |
| M | Outher Thread | M20 | mm |
| L | Total length | 76 | mm |
| L1 | Total flange length | 35 | mm |
| E | Length of D shape | 15.5 | mm |
| F | Length of threaded part | 25.5 | mm |
| kg | Mass | 1.21 | kg |
| Cdyn | Dynamic load rating | 29.6 | kN |
| Co | Static load rating | 21 | kN |
| Pu | Fatigue load limit | 0.88 | kN |
Sealing
O-RING+SHEET METAL SHIELD+S SEAL / DOUBLE T SEAL+STEEL SHIELD

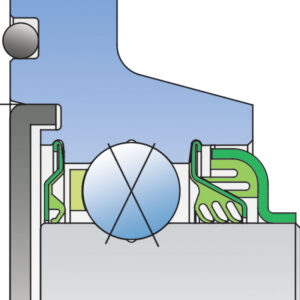

O-ring with Sheet metal shield and S seal on the base side and the double 3-lip seal with Steel shield on the front side.
O-ring with Sheet metal shield and S seal on the base side completely excludes all contaminants.
Double 3-lip seal protects the front side mauch longer than the just comaparing to the regular one 3-lip seal. Steel shield is additional, strong protection of the double 3-lip seal against mechanical damage.
